Page 5 of 5

Re: And now my I will not charge!!

Posted: Thu Sep 13, 2018 7:43 am
by 1pk
Charliejulliet removed his onboard charger completely and uses a portable chademo. So the obc must not be involved.

Any suggestions on troubleshooting this issue?

All I’ve got is canion but I’ll pick up one of those mut3 clones if it would be useful.

DCQC CAN buss

Posted: Fri Sep 14, 2018 3:43 am
by kiev

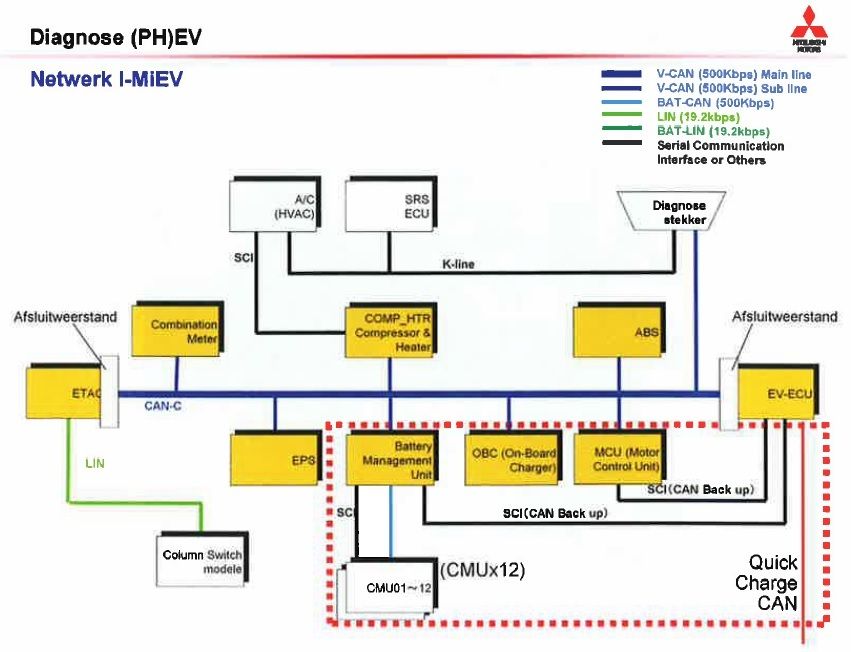

Network diagram, DCQC seems to have a separate CAN buss as you said the OBC is not involved


Re: And now my I will not charge!!

Posted: Fri Sep 14, 2018 8:56 am
by 1pk
Whew! I was hoping that it was not related to the OBC.

What issues would prevent quick charge from initiating?

I haven’t heard from greenlots yet as to what DTC 25003 means.

Re: And now my I will not charge!!

Posted: Thu Oct 11, 2018 8:46 pm
by 1pk
An update on this. There is a newer DCFC in my area that DOES work fine with my car, it's the older versions that no longer work for me. I plan to contact the utility that owns them for info.

Could this be a software or firmware issue with the chargers? There are not very many i-mievs around here so I haven't been able to flag down another driver to see if they have the same issue.

Re: And now my I will not charge!!

Posted: Fri Oct 12, 2018 6:20 am
by coulomb
1pk wrote: Could this be a software or firmware issue with the chargers?

It can't be the On Board Charrger (OBC), as it's not involved in fast charging. But it could be an issue with whatever controls the fast charge, I'm guessing either the BMS master (whatever its proper name is) or the EV-ECU. That determines second by second what the target voltage and current should be; the muscle in the fast charger just does what it's told.

Re: And now my I will not charge!!

Posted: Sat Nov 17, 2018 11:35 am
by Bjron
Oh its own CAN for Chademo..
I got car totally jammed when trying fast charge on 50kw Delta with 2x QC sharing sametime cabability. I was only car that moment. QC maked car fans rum when tryed 1. Time. But q.Qc stopped in 5 sec. 2.try didnt to anything. Qc said no CAN communication 0000040000

[img]

https://prnt.sc/ljlorp
[/img]
https://prnt.sc/ljlorp

https://youtu.be/Iq22hKh1WMs

[url]

https://youtu.be/j3s8H2IOi9o

[/url]
